DL-4063-D 4.3kg Electric Hydraulic Crimping Tool Copper Pipe

DL-4063-D 4.3kg Electric Hydraulic Crimping Tool Copper Pipe

4.3kg Electric Hydraulic Crimping Tool

Electric Hydraulic Crimping Tool Copper Pipe

Hydraulic Copper Pipe Crimper Tool

Place of Origin:


Brand Name:



China Utility model patent; Design patent

Model Number:


Contact Us

Request A Quote
Product Details
Operating Mode:
Metric System:
British System:
Φ1/2" ; 3/4" ; 1"
Mold Type:
V & H
Black Plastic Box
Charge Voltage:
Power Frequency:
50 Hz
Battery Voltage:
18V X 2.0 Ah / 18V X 4.0 Ah / 18V X 5.0 Ah
Payment & Shipping Terms
Minimum Order Quantity
30 pcs
To be negotiated
Packaging Details
Plastic Box.
Delivery Time
20-30 days
Payment Terms
Supply Ability
5000 pcs per Month
Product Description

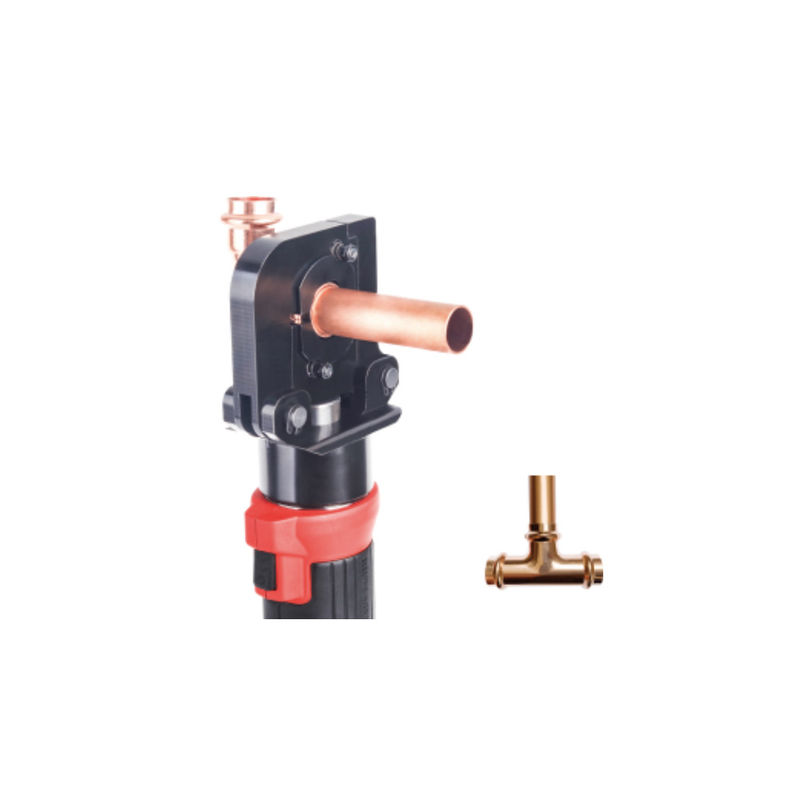

DL-4063-D Electric Hydraulic Pipe Crimping Tool For Copper Pipe



 Name:  Electric Hydraulic Pipe Crimping Tool for copper pipe
 Part Number:  DL-4063-D
 Operation:  Electric hydraulic
 Mold Type:  V & H
 Application Range:

 Metric System: Φ12,14,16,18,20,22,25(26),28,32mm

 British System: Φ1/2" ; 3/4" ; 1"

 Apply to:  Copper Pipe & Stainless Steel Pipe
 Charge Voltage:  110~240V
 Power Frequency:  50 Hz
 Battery Voltage:

 18V x 2.0 Ah / 18V x 4.0 Ah / 18V x 5.0 Ah





  • Versatility: The tool can crimp three types of pipe fittings: Tee, Elbow, and Straight, and can clamp pipes of varying sizes (Φ12-32). This feature makes it a versatile tool that can be used for multiple applications, reducing the need for additional tools.

  •  Efficiency: The jaws can be replaced quickly, and the tool is designed to be operated with one hand, which saves time and effort. The tool also automatically retracts the ram after completing the crimping process, reducing the time needed to reset the tool for the next use.

  • Convenience: The tool is designed with a one-button control, making it easy to operate, even for individuals with limited experience. The LED screen illuminates the work area and indicates the battery capacity and working condition, providing users with real-time information about the tool's performance.

  • Safety: The tool is equipped with several safety features, including the ability to manually retract the ram in case of an emergency or error and the automatic stop of the motor when the trigger switch is released. The rechargeable Li-ion battery also has a high capacity and requires a short charging time, This is Cordless tool, reducing the risk of accidents that maybe occur in corded tools.

  • Patent recognition: The fact that the tool has won both the Utility model Patent and Design Patent in both China and the US underscores the uniqueness and novelty of the tool's design and functionality, giving it a competitive edge in the market.



Kit includes: 1 pcs Electric Crimping Tool +  molds + lithium battery + instruction
DL-4063-D 4.3kg Electric Hydraulic Crimping Tool Copper Pipe 0DL-4063-D 4.3kg Electric Hydraulic Crimping Tool Copper Pipe 1DL-4063-D 4.3kg Electric Hydraulic Crimping Tool Copper Pipe 2DL-4063-D 4.3kg Electric Hydraulic Crimping Tool Copper Pipe 3DL-4063-D 4.3kg Electric Hydraulic Crimping Tool Copper Pipe 4

Company Profile:

Yuhuan Dingli Co., Ltd is a professional manufacturer of crimping tools for different compression fittings, sliding(cold expansion type) pipe fittings, air conditioning pipe fittings and other water heating and refrigeration pipe fittings. It is located in Yuhuan, the coast of the East China Sea (Export and Producing Base of China for Valves, Producing /Purchase Base of China for Water-heating Tools and Valves).


We absorb the most advanced technology of crimping tools for pipes and fittings in the world, and constantly improving and innovating the products. With advanced equipment, exquisite technology, new products are developed to make the product design more reasonable, more convenient for installation. Many products of our company have obtained CE certification, American market patents and domestic utility new product patents.


Our factory always takes "honesty, quality first, excellence" as the enterprise tenet, pays attention to personnel training and technological transformation, strictly controls the procedure of production, and improves testing means , to win the market with technical and cost advantages. We always take improving the content of science and technology, strengthening cooperation with customers and market as the main objective, firmly firm the ideological consciousness of high quality, high efficiency, co-development and co-prosperity, and strive to make the enterprise bigger, stronger and better, so as to make "Dili" a well-known brand at home and abroad. Welcome the distinguished guests at home and abroad to discuss trade and technical cooperation, and jointly open up a beautiful tomorrow for pipeline installation.





Technical advantage


We have cooperated with R&D engieers of well-known brands at home and abroad, such as POLYGON, MINGSHI, GINDE, VASEN, EFIELTE, SOLERAD, JINNIU, RIFENG etc. to discuss the development of new tools for new products, and to upgrade and improve the old products, so as to make the tools more flexible to use, lighter and faster to install; We will go on cooperating to make the world-class tools.






The hand clamps, hydraulic sliding tools, expander electric tools and manual sliding tools produced by Dingli have won the CE certification of EU.
DL-4063-D 4.3kg Electric Hydraulic Crimping Tool Copper Pipe 5DL-4063-D 4.3kg Electric Hydraulic Crimping Tool Copper Pipe 6
